Description
Rated power: 2×1500W/8 ohm, 2×2550W/4 ohm, 2×4335W/2 ohm; bridge connection: 1×3000W/16 ohm, 1×5100W/8 ohm, 1×8670W/4 ohm
Specification

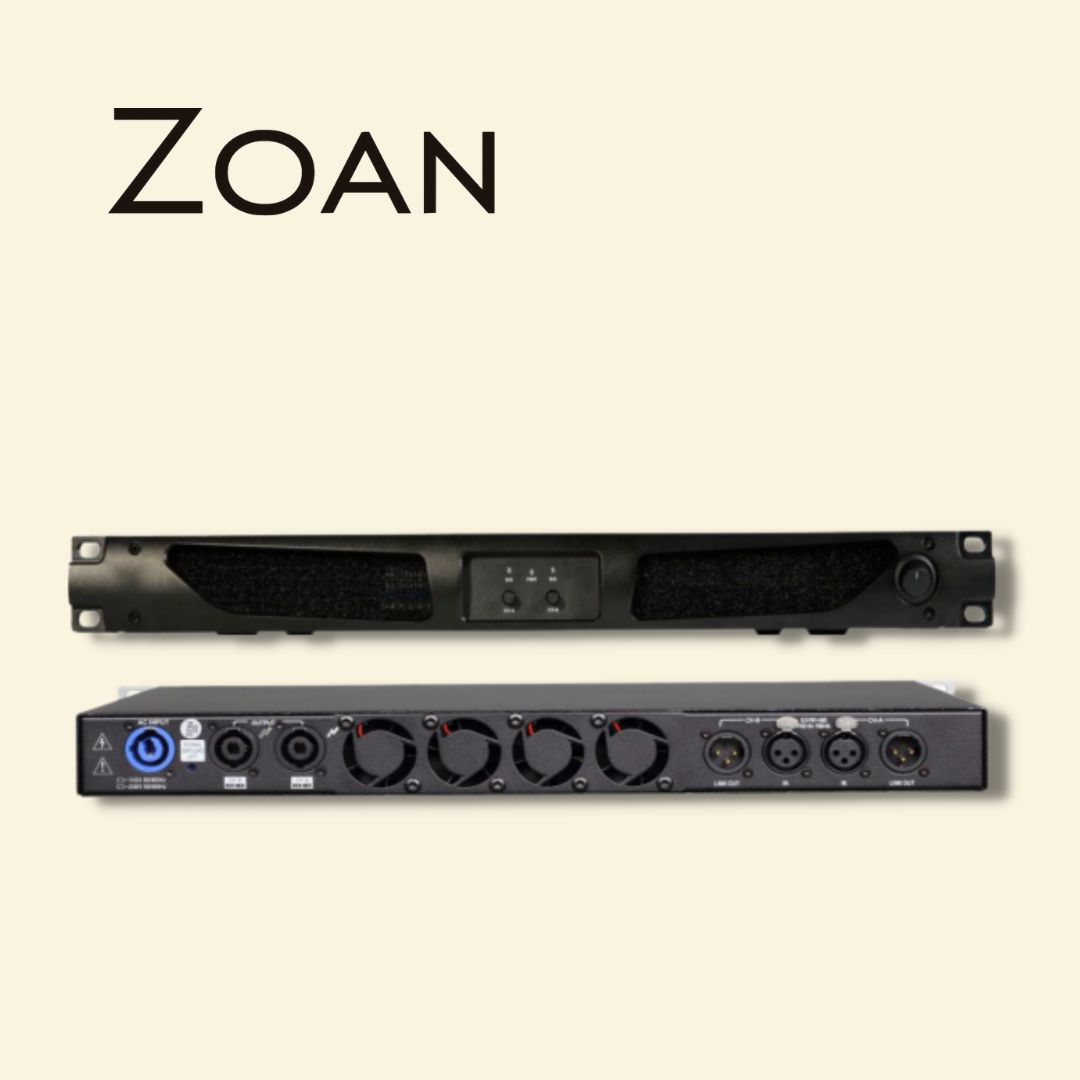

| Nama Produk | POWER AMPLIFIER ZN-DPA21500 |
| Merek | Tanpa Merek |
| Nama Pemilik Merek | – |
| No. Produk Penyedia | ZN-DPA21500 |
| Unit Pengukuran | unit |
| Jenis Produk | PDN |
| Nama Pemilik Sertifikat | – |
| Type/Model | ZN-DPA21500 |
| Deskripsi | Rated power: 2×1500W/8 ohm, 2×2550W/4 ohm, 2×4335W/2 ohm; bridge connection: 1×3000W/16 ohm, 1×5100W/8 ohm, 1×8670W/4 ohm |
| Keterangan Lainnya | – |
| Spesifikasi Teknis | Features: Using Class D technology, the conversion efficiency can reach more than 90%; 1U design, light body, easy to carry and install; Automatic limiting output, short circuit, under voltage, DC, overload, over temperature, power-on delay and other protection functions; The power amplifier is equipped with a delay start system to protect the speakers from impact and damage; The rear panel is equipped with dual-channel, single-channel, bridge output conversion; Balanced input interface, SPEAKON output; The power amplifier switching power supply has a separate cooling system; The cooling fan is controlled by an advanced continuously variable speed circuit; Technical Parameters: Rated power: 2×1500W/8 ohm, 2×2550W/4 ohm, 2×4335W/2 ohm; bridge connection: 1×3000W/16 ohm, 1×5100W/8 ohm, 1×8670W/4 ohm Frequency response: 20Hz-20kHz (±0.2dB) Total harmonic distortion (THD): ?0.01% Intermodulation distortion (IMD): ?0.01% Input sensitivity is optional: 41dB, 38dB, 35dB, 32dB Input impedance: 20k? (balanced), 10k? (unbalanced) Signal to noise ratio: ?109dB Damping coefficient (20Hz-200Hz): ?500 Crosstalk suppression (below rated power, 20Hz-1 kHz): ?90 dB Connection terminal: Input (CH1-2): XLR input connector Output (CH1-2): SPEAKON output terminal Power supply voltage: 90~260VAC, 50~60 Hz 1/8 Power consumption during rated operation: 50W Temperature range of use environment: 0~50? Humidity range of use environment: below 90%RH (but no condensation) Dimensions (W×H×D): 483×44×370mm Net weight: 9kg |
| Negara Asal Pembuatan Produk | Indonesia |
| Label Produk Ramah Lingkungan Hidup | Belum ada |
